Short Path Distillation

Batch Distillation System


20L

Working Princple

Short-path distillation is a distillation technique that involves the distillate travelling a short distance, often only a few centimeters, and is normally done at reduced pressure. For the experienced plant oil producer, short path distillation equipment offers a shortcut to added purity. All systems are turnkey systems and can be up and running on the same day as delivery.

Working Principle-3.jpg

Thermometer

Solution

Condenser

Cold Water In

Cold Water Out

Vapour

Heat

Distillate

Vacuum

20L Short Path Turnkey Distillation System


Calpha 20 liter short path distillation turnkey setup includes all necessary components to perform distillation easily, the systems includes reliable glassware and equipment under really attractive price.

Technical Specs & Features

Technical Specifications:

10-15L/batch

Up to 300C

Model

Boiling Flask

Heating Temp

Feed rate

Working Pressure

SP20L

20L

Around 5 Pa

Standard Features:
• Heavy wall glassware for durability
• Vacuum gauge for monitoring the pressure
• Distillation head with five sets of vigreux
• Boiling flask to distillation port: 35/45 joint

•Thermowell on boiling flask: 24/40 joint
• Thermowell on distillation head: 24/40 joints
• Recirculating fluid and vacuum connectors: 3/8" hose barb

• Insulating cover with heating can prevent heat loss

• Cold trap protects the vacuum pump from contamination and damage of vapors


No Gas Leakage

Thermowell design instead of traditional screw adapter, ensuring no gas leakag


Efficient Distillation Head

 Distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractionating and condensation of vapor with zero clogging.

Distillaton head.jpg

Continuous Discharging

Discharge valve instead of traditional 1-to-1 and 1-to-3  flask, which helps change the flask during operation and realize continuous discharge

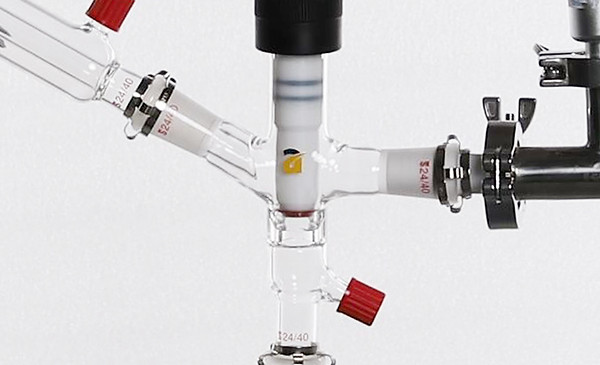

Distillation Cow.jpg

Better Vacuum Environment

Using KF flange and stainless Steel Vacuum Bellow to connect Cold trap and Vacuum Pump to Avoid Vacuum Leak

Cold Trap.jpg

Standard Package


1  Set

20L Magnetic Stirring Heating Mantle

Heating Power : 2100W

Temp. Range: RT~380℃

Rotate Speed: 50-1800 RPM

cold trap.jpg

2 Sets

Glass Cold Trap with 500mL Receiving Flask, Lab Jack, Cork Ring Stand

Distillation Cow Receiver_with_PTFE_Valv

2 PCS

Distillation Cow Receiver with PTFE Valve & Viton Gasket, 24-40 Joint

Glass Thermowell for 2L-5L Distillation

2 PCS

Glass Thermowell for 10L Distillation Heads, 14-20 Joint

Heat Insulating Jacket.jpg

1 PC

Heat Insulating Jacket for 20L Magnetic Stirring Heating Mantle

Cork Ring Stand.jpg

2 PCS

Cork Ring Stand

KF25 to 24-40 Adapter with O-ring, PTFE.

2 PCS

KF25 to 24-40 Adapter with O-ring, PTFE

Stainless Steel Z type KF25 elbow-(2pc).

2 PCS

Stainless Steel Z type KF25 elbow

Stainless Steel Keck Clamp, 34-45 Joint-

2 PCS

Stainless Steel Keck Clamp, 34-45Joint

Silicone Tubing, 8mm I.D & 14mm O.D, Met

7 Meters

Silicone Tubing, 8mm I.D & 14mm O.D


1 Set

Desktop Precise heater/chiller

Total Power: 1500W

Heating Power: 900W

Reservoir: 15L

Temp. Range: -5~95℃

20L_3-neck_Boiling Flask,_24-40_&_Two_34

1 PC

20L 3-neck Boiling Flask, 24-40 & Two 34-45 Joints

2000mL 1-neck Receiving Flask, 24-40 Joi

4 PCS

2000mL 1-neck Receiving Flask, 24-40 Joint

Glass_Thermowell_for_2L_Boiling_Flask, 2

1 PC

Glass Thermowell for 10L Boiling Flask, 24-40 Joint

Anodized_Aluminum_Lab Jack, 10x10cm.jpg

2 PCS

Anodized Aluminum Lab Jack, 10x10cm


10 Sets

KF25 Quick Clamp and Centering Ring

Stainless Steel 3-Way T Connector, KF25-

2 PCS

Stainless Steel 3-Way T Connector, KF25-2 & KF16-1

Stainless Steel High Vacuum Ball Valve,

2 PCS

Stainless Steel High Vacuum Ball Valve, KF25

Vacuum Grease.jpg

1 PC

Vacuum Grease

Digital Vacuum Gauge.jpg

1 PC

Digital Vacuum Gauge


2 Sets

Rotary Vane Oil Pump

Power: 550W

Pumping Speed:10 CFM (4L/s)

Rotary Speed:1400 RPM

10L-20L_Vacuum Jacketed_Short Path Disti

2 PCS

10L Vacuum Jacketed Short Path Distillation Head,34-45Joint

Glass Funnel_with_4 inch_opening, 24-40_

1 PC

Glass Funnel with 4 inch opening, 24-40 Joint

Glass Thermometer, 0-300C_副本.jpg

2 PCS

Glass Thermometer, 0-300C

3-prong Clamp.jpg

2 PCS

3-prong Clamp


2 Set

KF16 Quick Clamp and Centering Ring

Stainless Steel 3-Way T Connector, KF25-

3 PCS

Stainless Steel 3-Way T Connector, KF25: 2pcs, KF-16: 1pc

Stainless Steel Keck Clamp, 24-40 Joint-

7 PCS

Stainless Steel Keck Clamp, 24-40 Joint

Stainless Steel Vacuum Bellow, KF25, 1.5

3 PCS

Stainless Steel Vacuum Bellow, KF25, 1.5 Meters
